THE W1i – CAR SEAT

The low back W1i Tillett car seat is internally the same shape as our standard B6 but without the headrest. This light and compact seat can accommodate a driver up to approximately 100 kg with a 36 inch jeans waist size. There is a choice of a carbon or black GRP front finish and two specifications of edge cut in the leg support area.

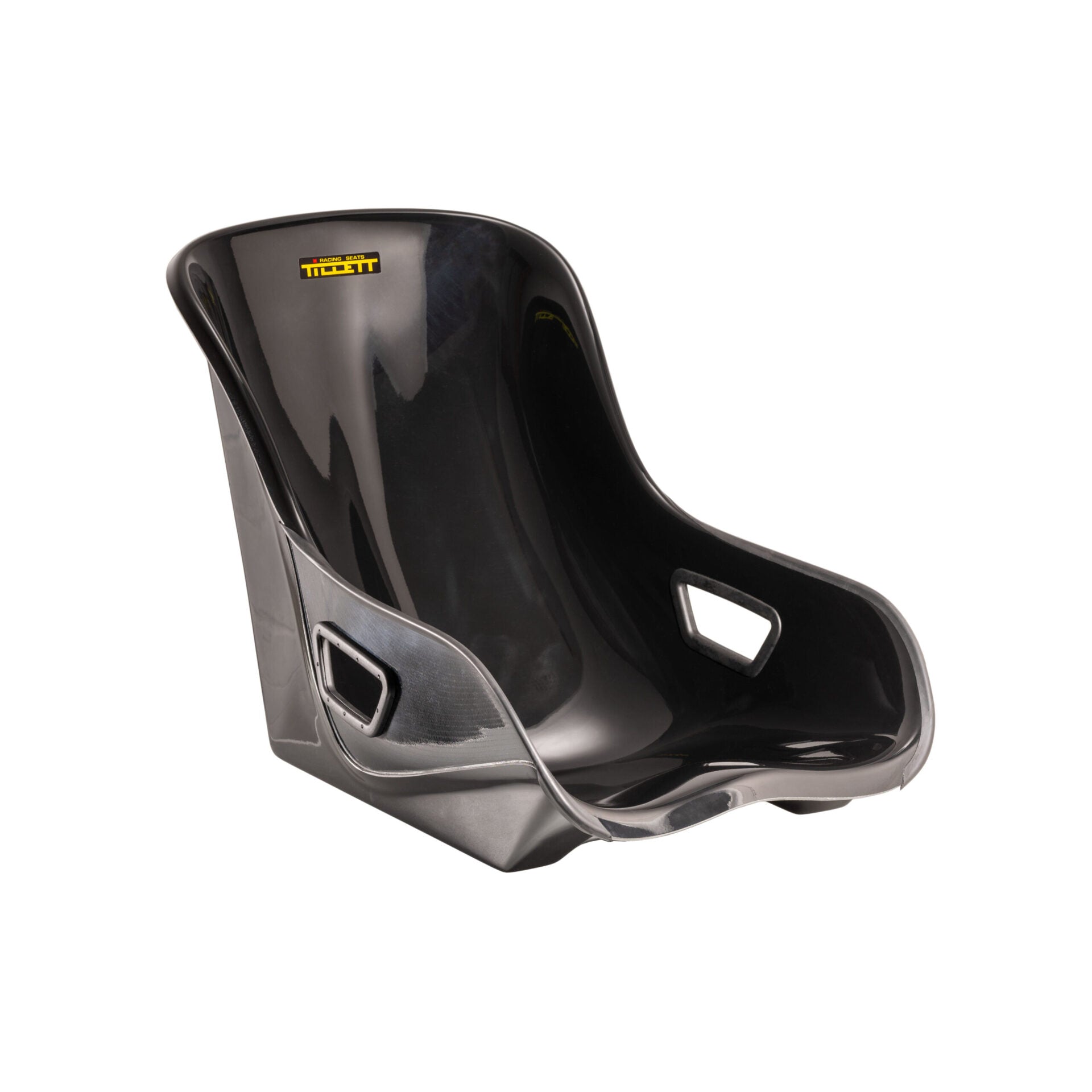

The W1i-40 version has a trimmed edge to allow fitment between the gearbox tunnel and the door sill of narrow vehicles, such as a Lotus 7 replica. We call this the "edges off" model.

The W1i-44 has the rolled edge left on "edges on" to give a more aesthetically pleasing look to the edge of the seat and is advised if you have the room.

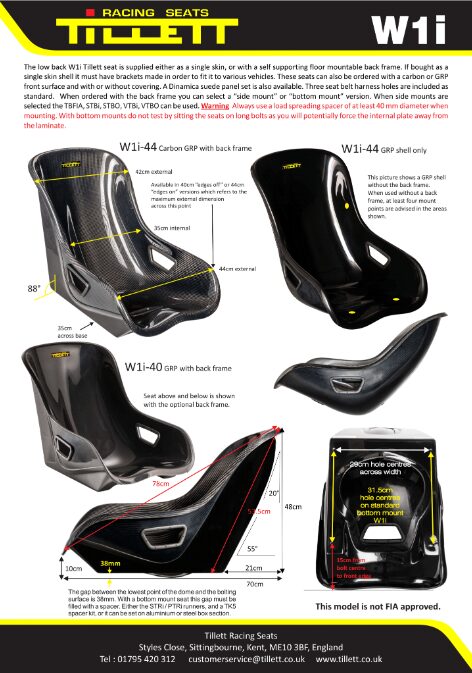

The W1i is also available as a single skin shell, or with a floor mountable backframe. The backframe consists of a second composite moulding bonded to the front skin, making the W1i a fully self-supporting rigid structure. Its four M8 embedded fittings can be in the bottom or the side of the backframe.

"Bottom mounts" allow it to mount directly to the floor using a spacer, or on top of the Tillett seat adjustment runners using the TK5 fitting kit.

With the side mount option, it is possible to use the same 2° race brackets as used by the FIA B6 and B7 seats. The weight of a W1i with the backframe is 3.5 kg and 1.9 kg without.

Low back W models are most suitable when a headrest is not practical, maybe for an application where there is already a headrest support in existence. The W1i shape is often suited to Formula Student university projects.

Available with no seat inserts, black suede inserts, or silver diamond stitched inserts.

There are currently tariffs on all Tillett parts which will be assessed once an order is processed. We will reach out before the order is fully processed to confirm the tariff rates and get approval. Feel free to contact us with any questions before ordering.

KEY FEATURES

• Internally the same shape as the standard B6 but without the headrest
• Carefully sculpted and designed to be the most compact of all race car seats
• Body mirroring shape gives the driver full support and unhindered steering control
• Accommodates drivers up to approximately 100kg with a 36 inch jeans waist size
• Available with backframe for extra support (side mount or base mount)
• Two edge cut options: "edges on" 44cm or "edges off" at 40cm
• Two finishes: gloss carbon/GRP & GRP
• Does not require padding – zero water absorption
• Manufactured in the United Kingdom

COMPATIBLE SEAT BRACKETS

• TB FIAO2 Brackets
• STBI Bracket Set
