T1 Tillett W2i

THE W2i – CAR SEAT

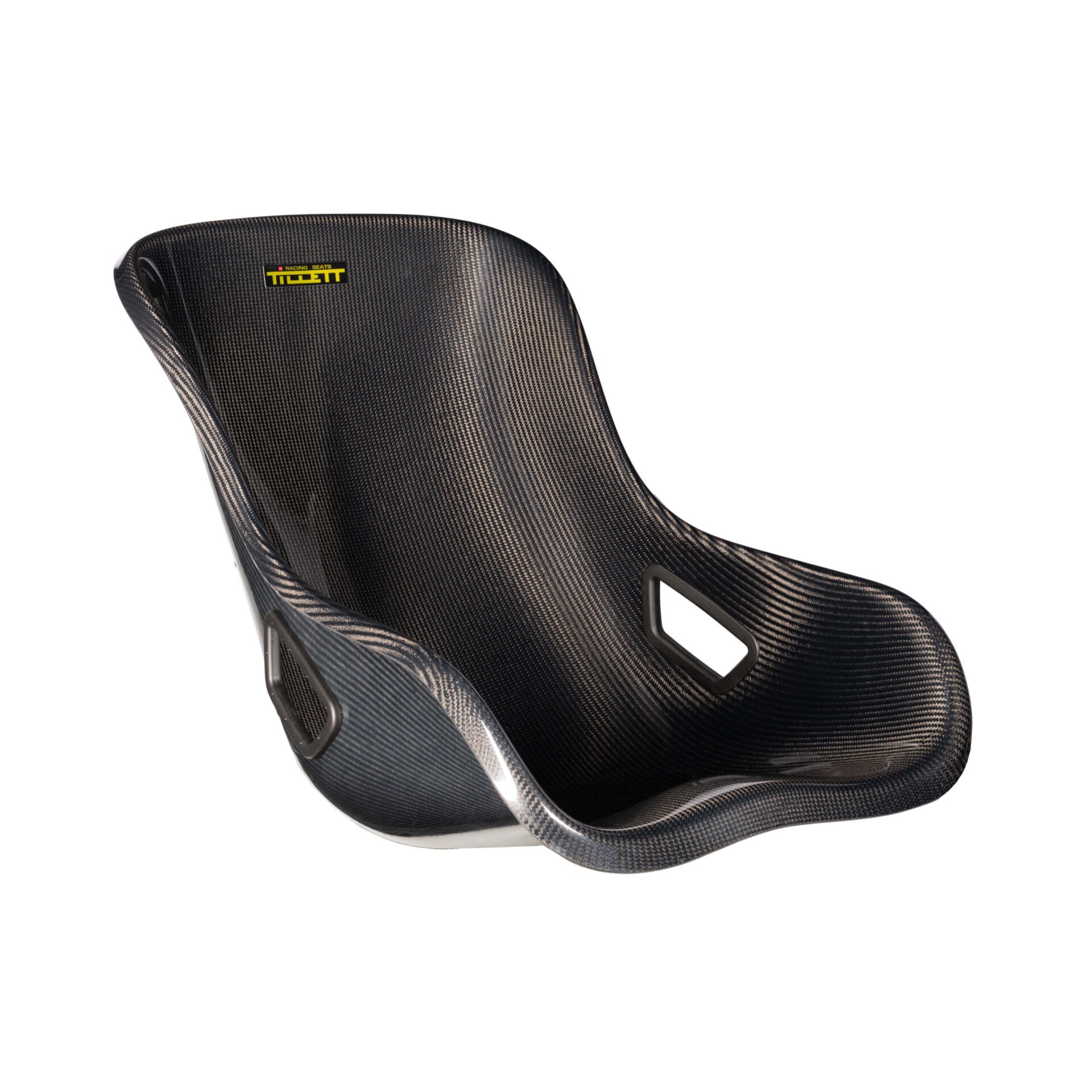

The W2i is a wider XL version of the W1i. The internal shape is like the B6 XL but without the headrest. It can be ordered as a single skin shell, or with a floor mountable backframe bonded to the front skin. This means the seat is then able to rigidly self-support itself from the floor using the integrated M8 fittings.

The W2i "with backframe" seat is only available with base mounts. There is no side mount option, and it cannot use Tillett brackets. It is available with either a Carbon/GRP or black gloss GRP finish.

The weight of the W2i without the backframe is 2kg. The weight with a backframe is 3.6 kg. Low profile moulded seat belt harness holes are included as standard. The W2i can be ordered with the option of a two-panel set of Dinamica® suede covered pads which will add approximately 1kg.

The captive bottom mounting points allow it to be fixed directly to the floor using a spacer or put onto the STRi or PTRi Tillett seat adjustment runners using the TK5 fitting kit.

Available with no seat inserts, black suede inserts, or silver diamond stitched inserts.

There are currently tariffs on all Tillett parts which will be assessed once an order is processed. We will reach out before the order is fully processed to confirm the tariff rates and get approval. Feel free to contact us with any questions before ordering.

KEY FEATURES

• Internally the same shape as the standard B6XL but without the headrest
• 15mm wider than the W1i – great for drivers over 100kg

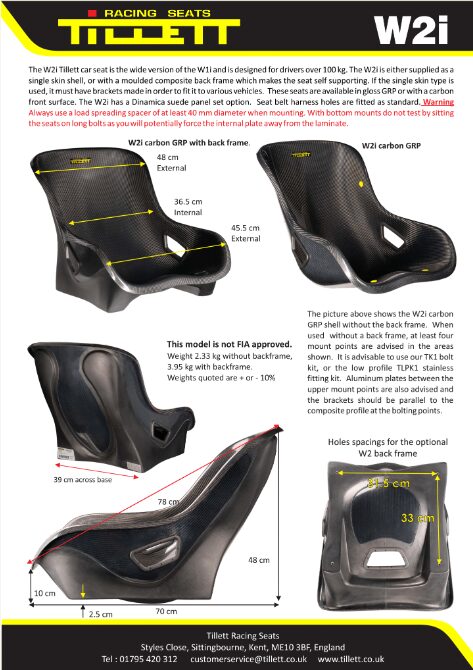

• 45.5cm at the widest point
• Available with floor mountable backframe (base mount only)
• Approximately 2kg without backframe, 3.6kg with backframe
• Two finishes: carbon/GRP & gloss black GRP
• Does not require padding – zero water absorption
• Manufactured in the United Kingdom

COMPATIBLE SEAT PANELS

• TP2
