The W3 race seat is a reclined version of the W1i, making the driving position suitable for low formula race cars. The W3 has two edge cut options. The narrow 40cm edge cut allows the seat to fit in narrow cockpits. Three low profile seat belt harness holes are included, enabling use of a five or six point harness, which is strongly recommended with any reclined seat.
The low back W models are most suitable when a headrest is not practical. For example, when a vehicle where there is already a headrest support in existence.
The weight of a W3 with the backframe is approximately 3.6kg and 2kg without.
The W3 has a gloss black GRP front surface with the option of a two-panel set of Dinamica® suede covered pads.

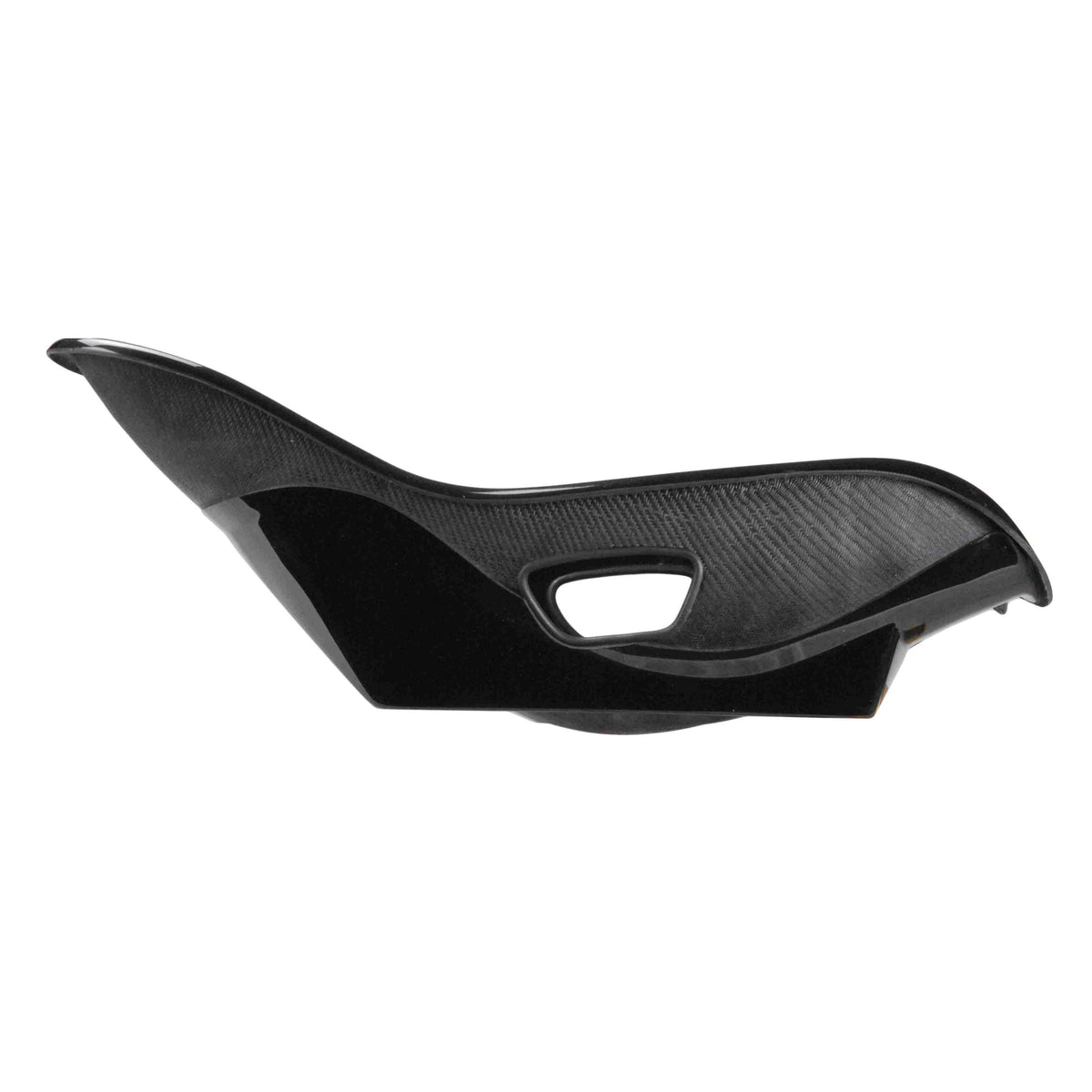

The W3-40 version has the edges trimmed down to a maximum of 40cm. The W3-44 has the rolled edge left on "edges on" to give a more aesthetically pleasing look.

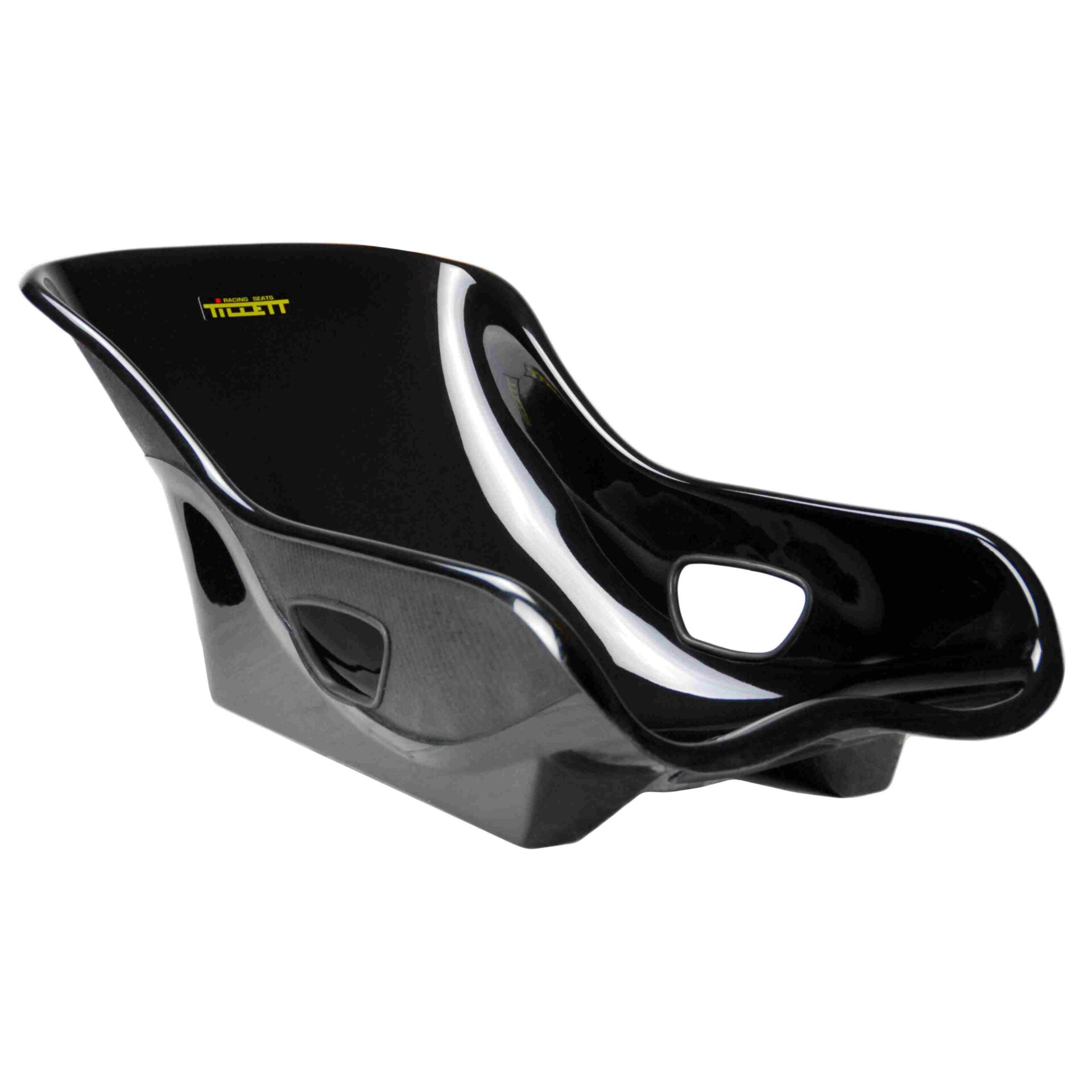

The W3 is available as a single skin shell, or with a floor mountable backframe with four captive M8 fittings in the base of the seat as standard, or with side mounts allowing the use of the Tillett 2° bracket sets.
Available with no seat inserts, black suede inserts, or silver diamond stitched inserts.
There are currently tariffs on all Tillett parts which will be assessed once an order is processed. We will reach out before the order is fully processed to confirm the tariff rates and get approval.
KEY FEATURES
Most reclined W seat – suited to formula cars
Body mirroring shape for full support and comfort
Approximately 2kg without backframe, 3.6kg with backframe
Low profile harness holes for 5 or 6 point harness
Accommodates drivers up to approximately 100kg / 36 inch waist
Two edge cut options: "edges on" 44cm or "edges off" at 40cm
Available with bonded composite backframe (base mount or side mount)
