The W5 is a semi reclined version of the W1i shape. This is suited for low sports prototype race vehicles and race simulators.

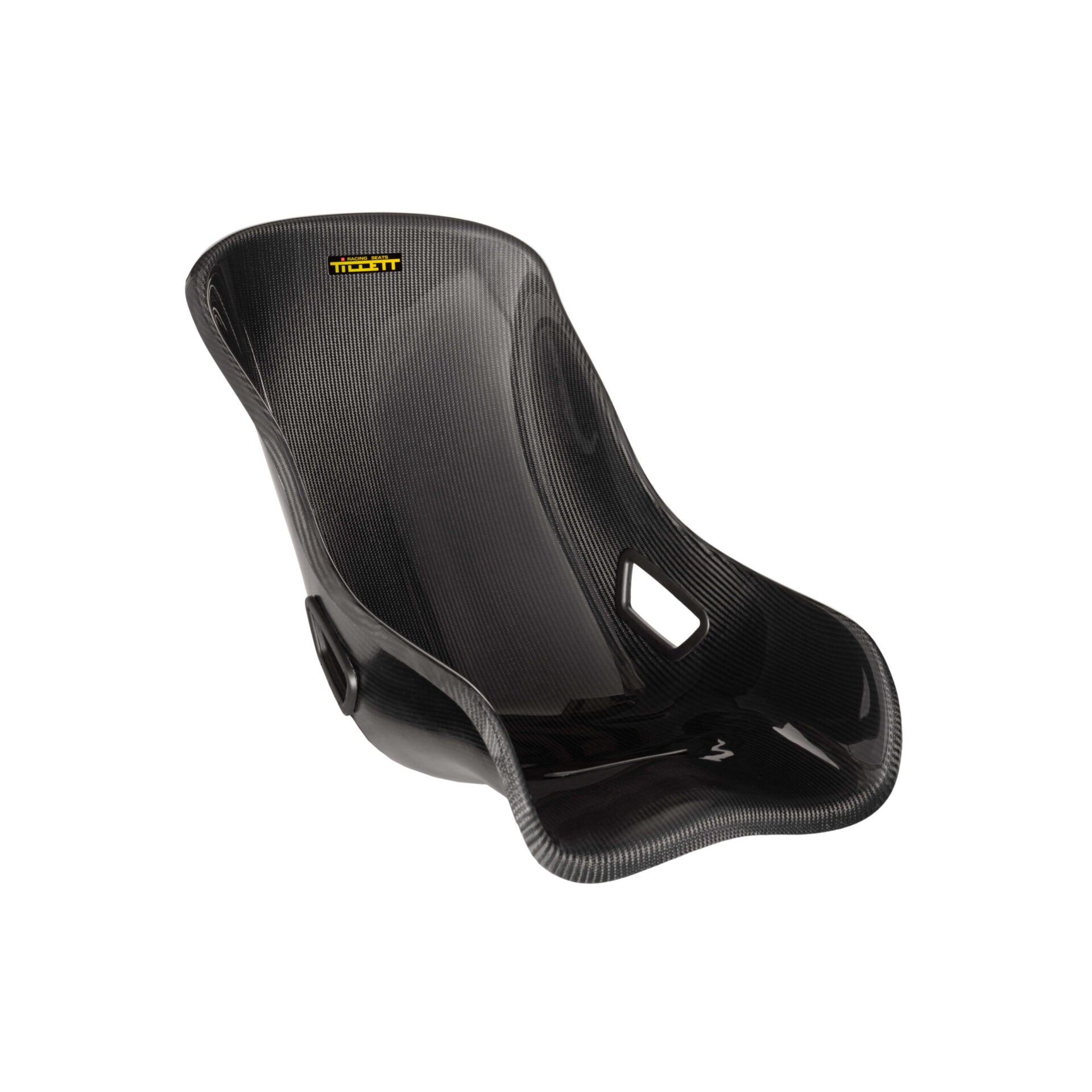

The seat is available either with a carbon, or a black GRP front finish and both models have a smooth black rear surface. Moulded low profile seat belt harness holes are included. The W5 seat is a single composite skin and will need brackets made to fit to the various vehicles. No backframe option exists for this shape. Single skin only.
Low back W models are most suitable when a headrest is not practical, maybe for an application where there is already a headrest support in existence.
Available with no seat inserts, black suede inserts, or silver diamond stitched inserts.
There are currently tariffs on all Tillett parts which will be assessed once an order is processed. We will reach out before the order is fully processed to confirm the tariff rates and get approval.
KEY FEATURES
Semi reclined driving position between the W1i and ultra-laid back W3
Most suited to low sports prototype race cars or racing simulators
Accommodates drivers up to approximately 100kg / 36 inch waist
No backframe option – single skin shell only
Low profile harness holes for 5 or 6 point harness
